MDG type 32t gantry crane
Product Description

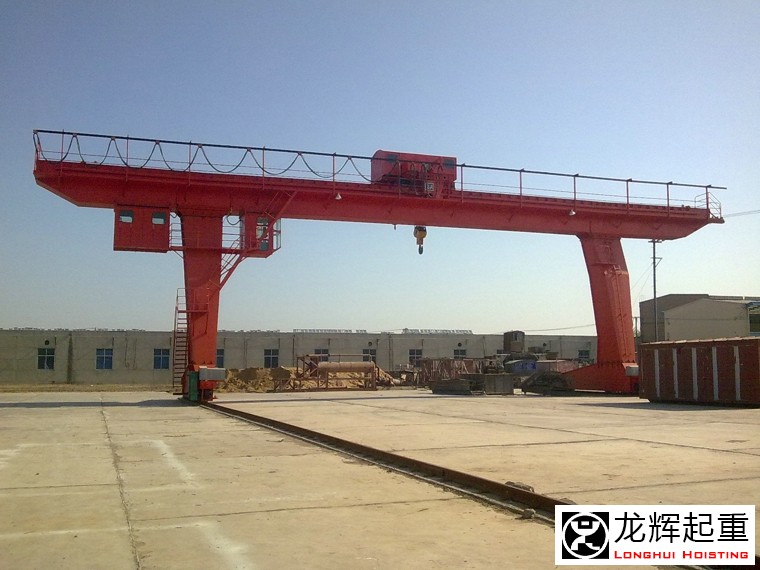

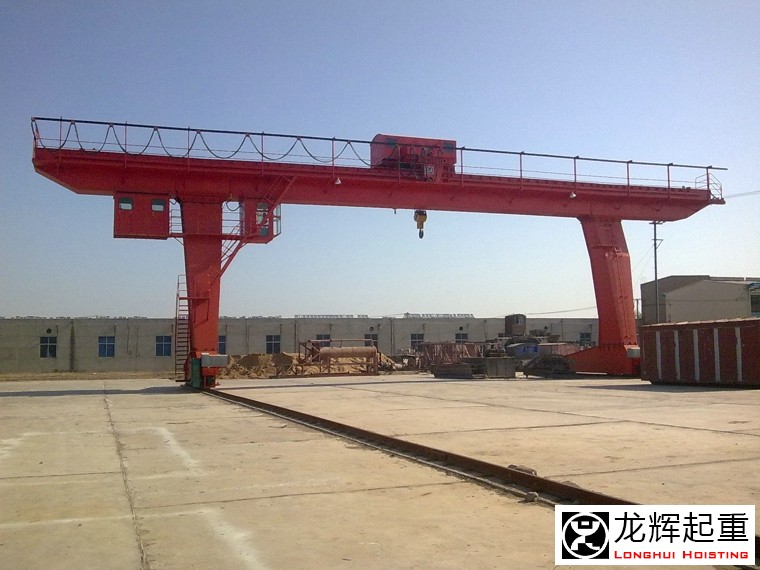

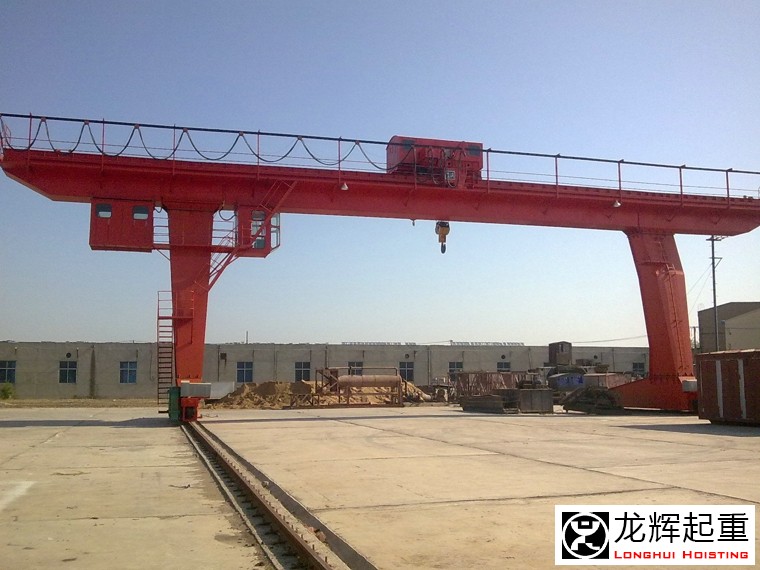

Type the MDGS - single girder gantry crane, the MDGS - general gantry crane/single girder gantry crane, the car run on a single main, through the horizontal or vertical roller, safety hook, ensure the operation safety and reliability, particularly suited to the crane lifting long expected to homework. It is mainly used for mechanical manufacturing workshop, warehouse, material yard, hydropower station, maintenance, assembly and so on.
This series product is equipped with the driver room manipulation and ground controlling two forms.
Features:
1, this series of cranes have 5 tons, 10 tons, 16/3.2 tons, 20/5 tons and 32/5 tons of 5 kinds of standard weight;18 meters, 22 meters, 26 meters, 30 meters, 35 meters span five kinds of standards, etc.
2, this series of cranes have slip line of power supply and cable power supply two basic modes of power supply.
3, up to 32/5 tons weight, one USES the trolley structure (a total of eight big wheels)
4, the weight is less than or equal to 20/5 tons, the car by vertical reverse wheel form;Lifting weight for 32/5 tons, the car take the level of the roller;

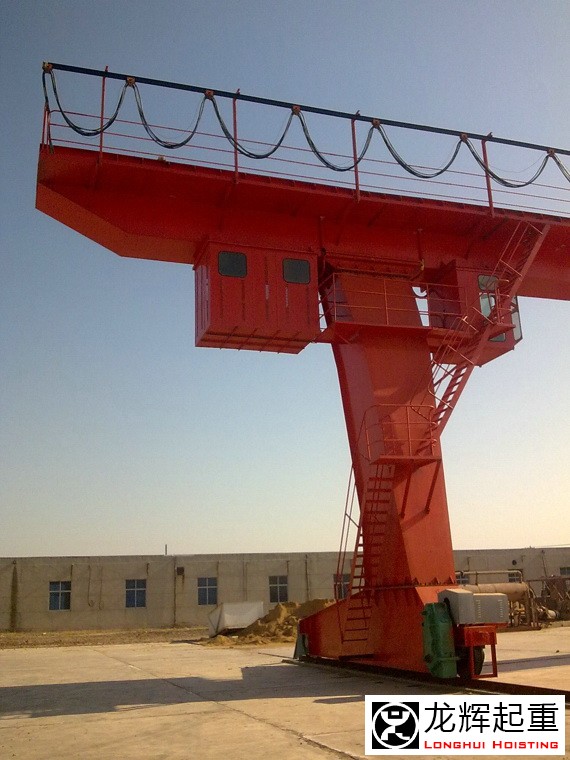

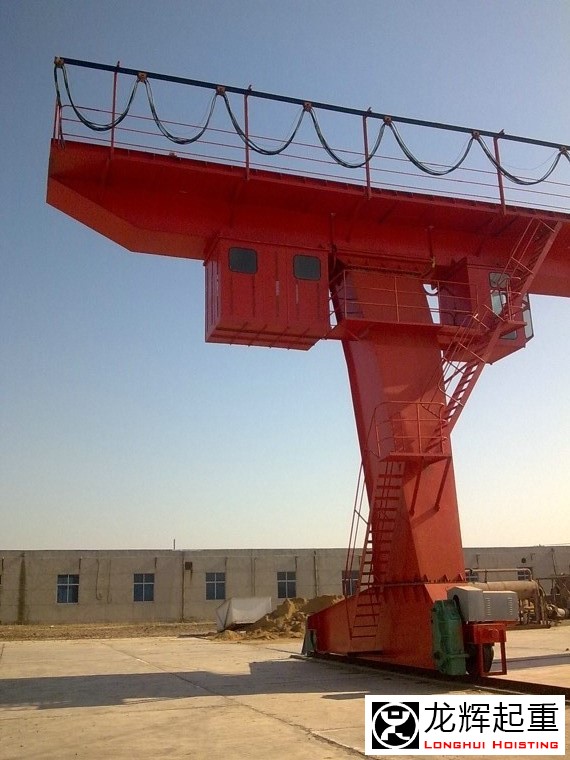

5, lifting weight for 32/5 tons, electronic control devices installed in an electrical room.Electric room with the driver for the center with leg room opposed.
Starting from June, this product is highly divided into two parts, crane rail surface above and below, please make sure that the user attention.
Name the Title units Unit specification Specs
Rated lifting weight Load: designed.the Gn 5 t, 10 t, 16 t, 20 t, 32 t.
40 m Span Span: 7.5 m - S
Hoisting Height Lifting Height: H 6 m to 20 m
Working Power supply Power source 3 p A.C 50 hz, 380 v
The level of working Class: jc A3, A5
Note: designed.the Gn = rated lifting tonnage S = span (left to right track center distance to the center of the track) H = hoisting height (from the ground to hook the highest)
